| Power supply | 380V ± 10%/50Hz /2.5KW(Three-phase four-wire system) |
| Air pressure | 4-6kg/cm2 |
| Tape width | 4.8-7.2cm tape max.Length 2km |
| Working speed | 20~60cases/min |
| Case Size | Custom-made |
| Sealing specification | Custom-made |
| Sealing type | Hot glue |
| Outside dimension | L4250 x W2000 x H1700mm |
| Electric adoptions | Adopt TAIWAN "CPG" or "DONG LI" motor. |
| Worktable height | 1000mm |
| Machine weight | 1000kg |

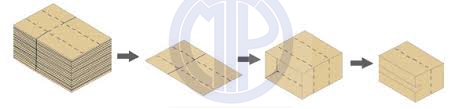

The innovative full automatic tray former easily folds a variety of corrugated cases - from double wall to recycled material, and can form up to 60 cases per minute.
Performance-proven on packaging lines spanning East Asia, this case erector / bottom sealer gives you so much more. It's powerful, with a continuous motion drive that speeds through case forming and sealing from 20-60cases/min.
It's smart, with PLC electronics that control operation, document performance and take the guesswork out of diagnostics. It's operator-friendly, with simple touch screen controls and an easy-refill case magazine. With easy changeover and features to accommodate poor corrugated, this case erector is a solid addition to your packaging line. The CF-40T-H is designed with your needs in mind. Not only, it’s the highest quality bottom sealer in the industry; but it is also the most cost effective.
