Power Voltage | 1P AC220/3P 380V 50Hz 2.5KW |
Air pressure | 4~6kg/cm2 |
Speed of turnplate | 0~9r/min(optional) |
Dia.of turntable | 2000(Usually 2000,custom-made) |
Roller worktable height | 550mm |
Roller diameter | 76mm |
Mast height | H2400mm(optional 2000/2700/2900/3000/3100) |
Film | LLDPE film,width<=500mm,out diameter<=280mm |
Pallet size | Capacity:2000kg; max height=mast height-400mm |
Machine size | 3000x2000xH(Commonly 2000,custom-made) |
G.W/N.W | 1400kg/1300kg |
Optional | ①Ramp ②LCD ③Safety guard ④Powered roller conveyor |

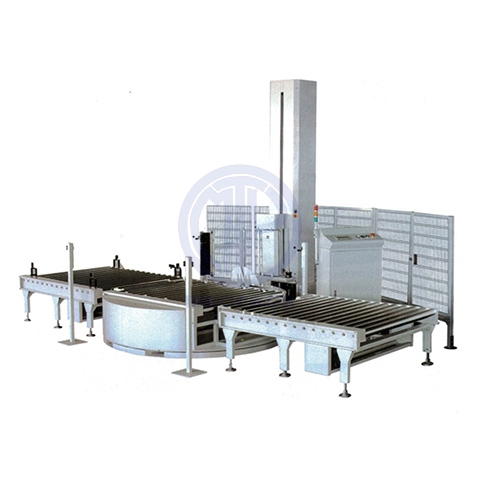

Fully Automatic Pallet Pre-Stretch Wrapper
Comes with conveyor system.
Suitable for unmanned packing system, automatic connect & break film,
soft start/stop, PLC control, home position, sensor tests pallet height.
